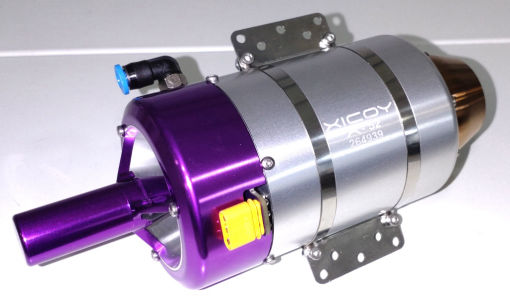

X52 Turbojet

Power output adjustable from 25N to 52N

The upgrade of the popular X45!  Same size, more power!

Specifications

Seven years after the launch of the X45 engine—and with thousands of units manufactured—the time has come to apply everything we have learned. This new evolution incorporates all the expertise gained over the years, especially the breakthroughs achieved during the development of the X30.

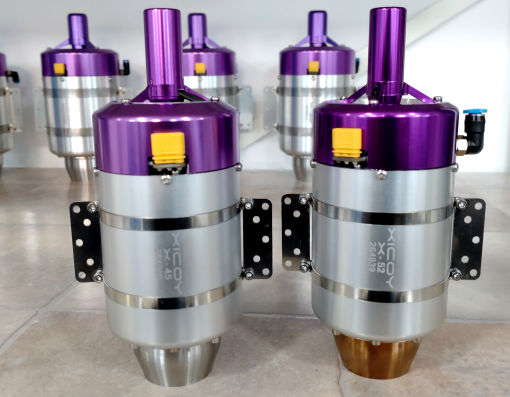

The X52 engine maintains the same compact size and weight as the X45, but with a significant increase in performance while keeping the low residual thrust of the original X45.


Specifications
Thrust:Continuously adjustable from 25 to 52N (11,7 Lbf)
Size:59.8mm diameter, 158mm long
Weight:385g ( 0.85 lb) engine only, 463g ( 1,02 lb) total installed weight except battery
Rpm Range:60,000 ... 225.000 RPM
Idle Thrust:1.8N (0,17Kg/0,4Lbf)
Fuel:Kerosene only + 4% oil. Fuels containing Biodiesel not allowed.
Fuel consumption:160g/minute at 52N. (205ml/min)
Starter motor:High speed brush-less
Fuel pump:Digitally controlled brush-less pump
Telemetry:Jeti, FrSky, Hott, PowerBox and Futaba included, integrated in the ProHub. An optional (not included) module allows MPX and JR.
Service interval:25 hours
Reccomended battery:2s Lipo/2200mAh reccomended. (3s Life compatible, not recommended).  Battery not included
Other:Built in sensors for ambient temperature and atmospheric pressure to automatically adjust the engine performance
