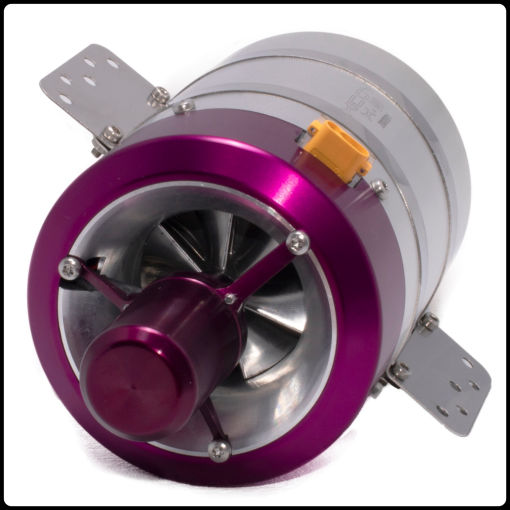

X95 Turbojet

Power output adjustable from 45N to 95N

Small and light!.

Specifications

In the early 2000s, Wren Turbines launched the famous Wren44, the smallest engine available at the time. The diameter of the engine was only 76mm and in its earliest form, the MW44 developed 30N of thrust, later variants increasing to 50N. Its size quickly defined the standard in small engine class, and several manufacturers developed engines of similar size, increasing the power in every new model, currently within the market, this diameter engine covers a range of thrusts, 45N, 50N, 55N, and 70N.

The X95, as all Xicoy engines, push the limit well beyond our competitors, raising the power to 95N, almost 3 times the power of the original MW44 and with the added benefit of lower overall weight.

The X95 is of the same size of previous X90 and X85 engines, using all new internal parts like rotor, stator  and combustion chamber.

Thanks to the FlexThrust technology, the X95 can be used in all aeromodels designed for the MW44 and similar engines of 45N to much bigger models needing up to 95N, greatly improving the choices when looking for your next plane!
As with all Xicoy Engines our purpose designed X95 electronics offers an industry leading simple, lightweight installation. One of The biggest hurdles in Turbine Design is Specific Fuel Consumption (SPFC), the X95 has the lowest TSFC.

The engine is offered in Compact or Light versions.

SpecificationsPRELIMINARY
Thrust:Continuously adjustable from 45 to 95N (9,7kgf, 21,4 Lbf)
Size:76mm diameter, 183mm long
Weight:706g (1,56lb) engine only, 888g (1,96lb) total installed weight except battery
Rpm Range:48,000 ... 175.000 RPM
Idle Thrust:3.8N (0,4kg/0,85Lbf)
Fuel:Kerosene + 4% oil. Diesel allowed but not reccomended. Fuels containing Biodiesel not allowed.
Fuel consumption:260g/minute (330ml/m) at 95N
Starter motor:High speed brush-less
Fuel pump:Digitally controlled brush-less pump
Telemetry:Jeti/Futaba/MPX/Core/Hott/FrSky/Spektrum and  Bluetooth Android and IOS (optional modules)
Service interval:25 hours
Reccomended battery:2s Lipo/2200mAh reccomended. (3s Life compatible, not recommended).  Battery not included
Other:Built in sensors for ambient temperature and atmospheric pressure to automatically adjust the engine performance
