X380 Turbojet

Power output adjustable from 190N to 380N

The beast!.

Specifications

High power for serious projects!, coupled with a extremely low residual thrust.

Data below is preliminary, engine still is in development phase and can change.


Specifications
Thrust:Maximum thrust adjustable from 190 to 380N (86 Lbf, 38,5Kg )
Size:140mm diameter, 317mm long

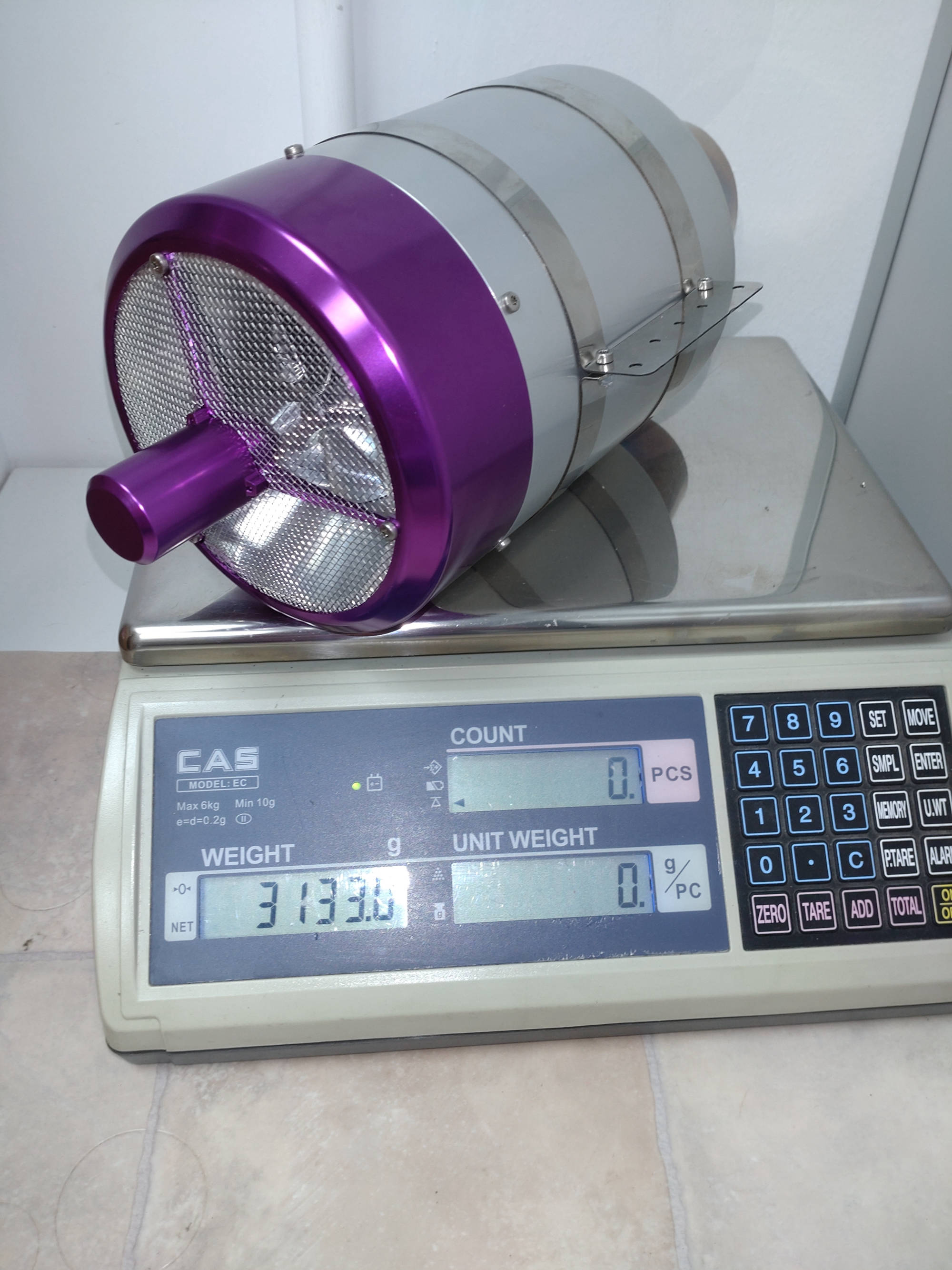

Weight:3133g (6.9lb) engine including mounting strap, 3.350g (7,4lb) total installed weight except battery
Rpm range22.000 ... 96.000
Idle thrust:10N
Fuel:Kerosene + 4% oil
Fuel consumption:985g/min (1250ml/min) at full power. SFC:  0,154
Starter motor:High speed brush-less
Fuel pump:Digitally controlled brush-less pump
Telemetry:Jeti, FrSky, Hott, PowerBox, Spektrum and Futaba included, integrated in the ProHub. An optional (not included) module allows MPX and JR.
Service interval:25 hours
Reccomended battery:3s Lipo/2200mAh.  Battery not included
Other:Built in sensors for ambient temperature and atmospheric pressure to automatically adjust the engine performance
