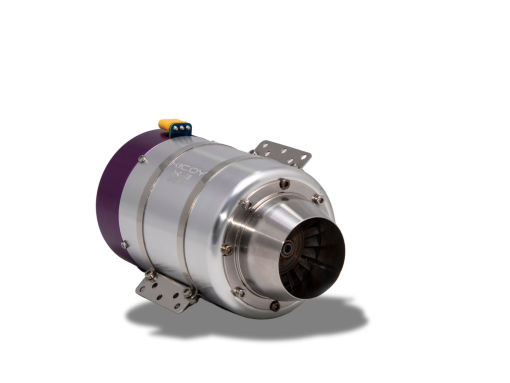

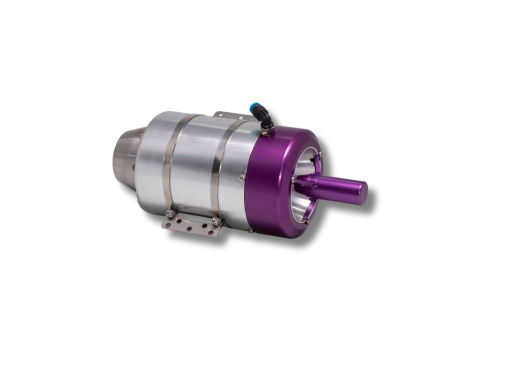

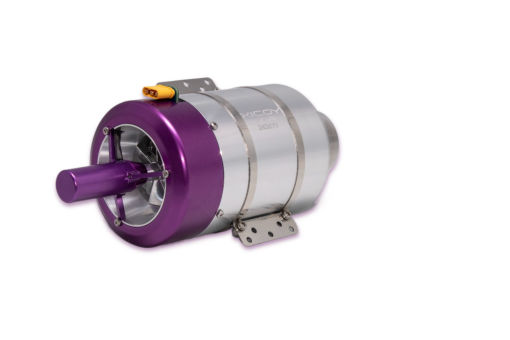

X70 Turbojet

Power output adjustable from 35N to 70N

The big sister of the Xicoy small motors family!

Specifications

This engine, which shares all ancillary components and some internal parts with the other members of the "small engine family" comprising the X45, X60 and X70, can be described as the X45's "big brother". Compared to the X45, it is 8 mm longer, 8 mm larger in diameter and just 90 grams heavier, but has 55% more power.

The X70, like all Xicoy motors, far surpasses other motors on the market, offering 70N in a much smaller and lighter size than its direct competitor.

Thanks to FlexThrust technology, the X70 can be used on all model aircraft designed for engines from 40 to 70 N of thrust, greatly improving your options when looking for your next aircraft.
As with all Xicoy engines, our purpose-built X70 electronics offer industry-leading lightweight and easy installation. One of the biggest hurdles in turbine design is specific fuel consumption (SPFC), the X70 has the lowest SPFC in its class.


Specifications
Thrust:Continuously adjustable from 35 to 70N (15,8 Lbf)
Size:68mm diameter, 166mm long
Weight:488g ( 1.08 lb) engine only, 563g ( 1,25 lb) total installed weight except battery
Rpm Range:55,000 ... 195.000 RPM
Idle Thrust:3.0N (0,31Kg/0,67Lbf)
Fuel:Kerosene + 4% oil. Fuels containing Biodiesel not allowed.
Fuel consumption:215g/minute at 70N. (275ml/min)
Starter motor:High speed brush-less
Fuel pump:Digitally controlled brush-less pump
Telemetry:Jeti, FrSky and Futaba included, integrated in the ProHub. An optional (not included) module allows MPX/Core and Hott.
Service interval:25 hours
Reccomended battery:2s Lipo/2200mAh reccomended. (3s Life compatible, not recommended).  Battery not included
Other:Built in sensors for ambient temperature and atmospheric pressure to automatically adjust the engine performance
